Proud Manufacturer of the Lightning Line of Aircraft
Performance
Jabiru 3300
Horsepower
120 HP
Cruise Speed
130 kts TAS
Vne
180 kts
Stall (Full Flap)
40 kts IAS
Glide Ratio
15:1
Climb Rate
1200 ft/min
Empty Weight
850 lbs


Specifications

Wing Span
27'2"
Length
20'8"
Height
6'6"
Cockpit Width

41" at shoulders

42" at elbows

Wing Area
91.0 sq ft
Gross Weight
1525 lbs at std. category
Fuel Capacity
40 gallons


Classic Kit Standard Equipment:

  • Aluminum Gear
  • Removable Fuel Tanks
  • Bullet Wingtips
  • MK II Tails
  • Jabiru FWF Package
  • 25 Degree Electric Flaps

The Lightning Standard "Classic" kit comes with the firewall forward package for the Jabiru 3300 engine. This includes: all engine controls, carb heat system, oil recovery system, battery mount hardware, oil cooler, and AN fittings with braided lines. As mentioned before, the motor mount, cowls, and spinner are included too. Twenty gallon removable fuel tanks in each wing are standard.  This kit can be made to go as fast as the Jabiru engine can take you or it can

be made Light Sport Compliant, just choose the

corresponding options on the order form.

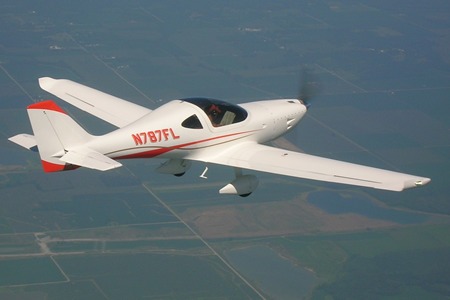

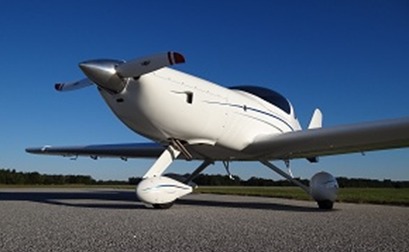

Lightning Classic Kit
